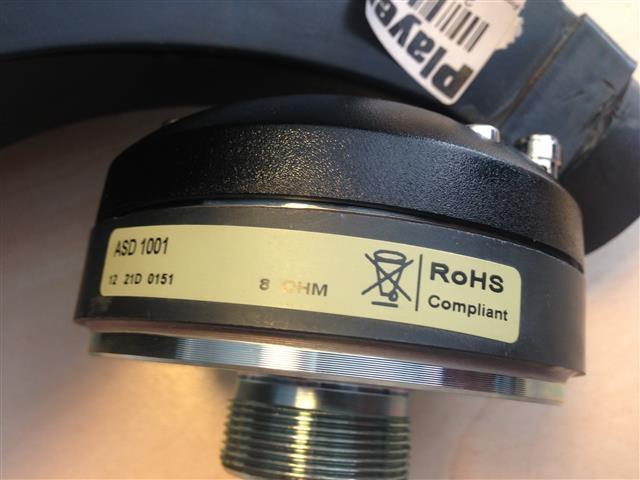

Eminence ASD 1001 Driver 1inch 50w
EUR
SPECIFICATION Throat Size 1\", 25.4mm Nominal Impedance* 8 ohms Power Rating** 50W @ 2.5kHz Resonace 1.23kHz Usable Frequency Range 2.5Hz-20kHz Sensitivity*** 104.3dB (1W/1m across 2.5kHz-20kHz) Magnet Weight 12oz, 0.34kg Voice Coil Diameter 1.3\" / 33mm
THIELE & SMALL PARAMETERS
DC Resistance (Re) 6.7 Coil Inductance (Le) 1.1mH
MOUNTING INFO
Overall Diameter 3.5\", 88.9mm Mounting Holes Diameter ~ Mounting Holes B. C. D. ~ Mounting Thread 1 3/8\" 18 NEF ext. Depth 2.45\", 62mm Weight 2 lbs, 0.9 kg
MATERIALS OF CONSTRUCTION
Diaphragm Material Diamond Titanium Magnet Composition Ferrite
SALJEM NA ADRESU BRZOM POSTOM Opis linka
THIELE & SMALL PARAMETERS
DC Resistance (Re) 6.7 Coil Inductance (Le) 1.1mH
MOUNTING INFO
Overall Diameter 3.5\", 88.9mm Mounting Holes Diameter ~ Mounting Holes B. C. D. ~ Mounting Thread 1 3/8\" 18 NEF ext. Depth 2.45\", 62mm Weight 2 lbs, 0.9 kg
MATERIALS OF CONSTRUCTION
Diaphragm Material Diamond Titanium Magnet Composition Ferrite
SALJEM NA ADRESU BRZOM POSTOM Opis linka
