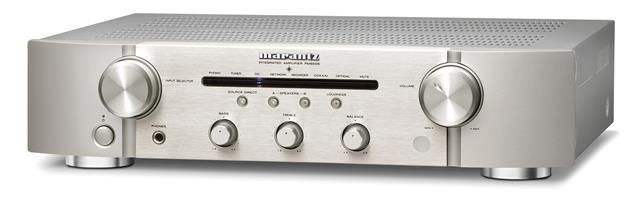

Marantz PM6005 SilverGold
EUR
EUR
Kratak opis
Based on our award winning PM6005 integrated amplifier, the PM6005 adds digital audio decoding, via the reference class CS4398 24 bit/192 kHz high current D/A converter, along with our exclusive HDAM (Hyper Dynamic Amplifier Module) technology, which uses precision discrete components instead of conventional op-amp integrated circuits. The high current power supply features a high capacity shielded toroidal power transformer that provides high instantaneous burst current, essential when driving lower impedance speaker loads. The power supply also features large high current storage capacitors, and high current high speed Shottky Barrier Diodes for the cleanest power characteristics.
Specifications
45 watts x 2 channels into 8 ohms (20-20,000 Hz) at 0.08% THD
60 watts x 2 channels into 4 ohms (20-20,000 Hz)
4-ohm capability allows use with a wide range of speakers
Cirrus Logic CS4398 24-bit/192kHz digital-to-analog converter for high-performance playback of digitally connected sources such as network music players or CD players
high-current toroidal power transformer for clean playback and smooth handling of demanding speaker loads
Hyper Dynamic Amplifier Module and current feedback amplification for accuracy and control under high-drive conditions
front-panel tone controls (treble and bass)
Source Direct mode bypasses tone control circuits for cleaner sound
optical and coaxial digital audio inputs
5 stereo RCA audio inputs (including MM phono input)
stereo RCA audio outputs for recording
built-in headphone amplifier with full-size (1/4-inch) jack
connections and front-panel switching for two pairs of speakers
frequency response 10-70,000 Hz (+0dB, -1dB)
signal-to-noise ratio: 102 dB (line in), 83 dB (phono)
IR flasher and remote control inputs
detachable power cord
remote control also operates the Marantz CD6005 CD player
17-5/16"W x 4-1/8"H x 14-5/8"D
weight: 16.8 lbs.
