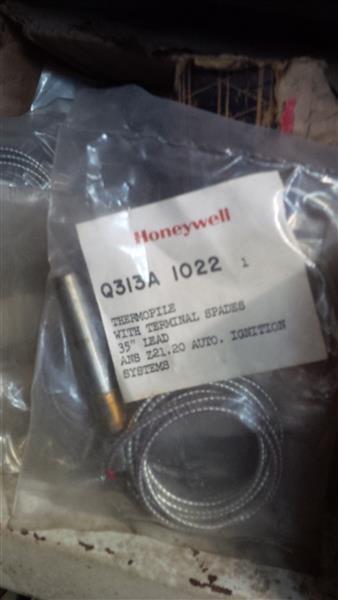

Termo element Honywell Q313A 1022

EUR

Objavljeno: sep 20 09:11

Pregleda: 1

Proizvodi:Grejalice i Klima Uređaji Tip oglasa:Prodaje se Oglašivač: Fizičko lice Lokacija:Beograd

kontrola plina
Description for Honeywell Q313A1022

Q313 Thermopile Generator contains multiple thermocouples connected in series to increase the millivoltage output. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.

Features

Push-in clip, split nut, and adapter assembly for easy pilot burner installation
Spade or quick-connect terminals available for millivolt gas control connections
Male nut connector for Pilotstat safety control power units
Available in a variety of lead lengths

Specifications
Voltage: 750 mV
Connection Type: Spade Terminals
Lead Length (in.): 35 in.
Open Circuit Output (mV): 600 mV to 750 mV
Resistance: 2.89 ohm
Temperature Ratings (F): Hot Junction 1400 F
Temperature Ratings (F)
Used With: Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners
